A custom metal badge may begin as a sketch, an older badge, a logo file, a photograph, or simply an idea described in words. Turning that starting point into a successful physical piece requires more than sending a reference image and choosing a quantity. The manufacturer needs a clear design brief that explains what must stay exact, what can be adapted, and how every visual layer should appear in metal.

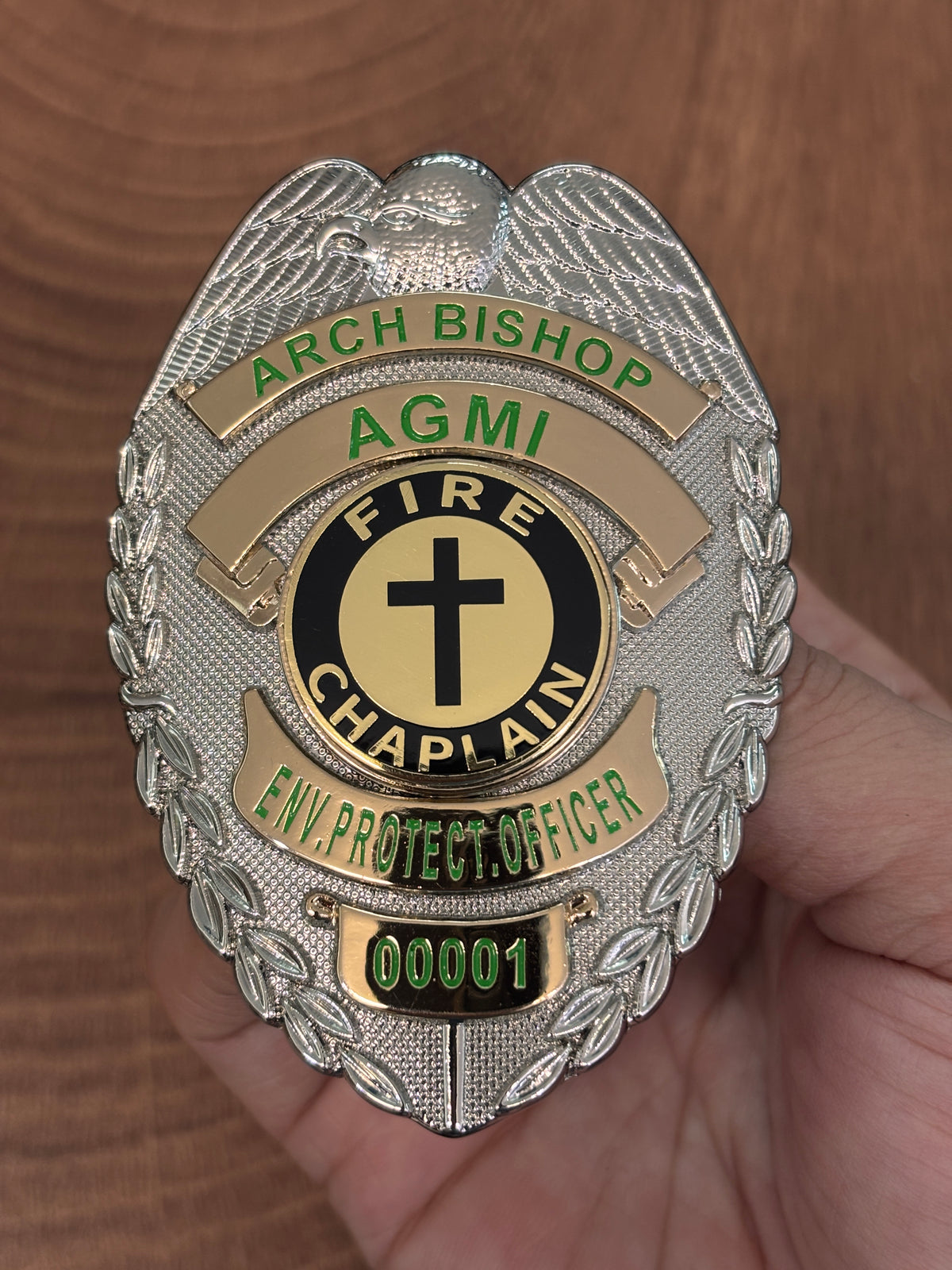

The featured badge shows why preparation matters. It combines an eagle-topped silhouette, silver- and gold-tone areas, several curved text bands, green lettering, a black-and-gold center emblem, an occupational title, and a five-digit number. Each detail occupies a defined position. Organizing those requirements before production makes the proofing process clearer and reduces avoidable revisions.
Create an Exact Wording List
Begin by writing every line of text exactly as it should appear. Do not rely on a designer to transcribe lettering from a photograph if you can provide a verified text list.
Record capitalization, punctuation, abbreviations, spacing, and number formatting. In the featured design, the upper bands, center wording, lower role line, and number plate all use different content. A short abbreviation such as “ENV.” includes a period, while a value such as “00001” depends on leading zeros. Removing those zeros would change the requested identifier even though the numerical value might seem unchanged.
If several badges will use the same base design, separate fixed wording from variable wording. Fixed fields remain identical across the order. Variable fields may include a name, role, unit, date, or identification number. A clean spreadsheet or numbered list can help match each unique entry to the correct quantity.
Identify the Master Silhouette
The silhouette determines how much room is available for text and artwork. Common starting forms include shields, ovals, stars, eagle-top badges, circular emblems, and custom outlines. Choose the overall shape before refining small details because every banner and emblem must fit within it.
The featured piece uses an eagle-top form with a broad oval body. The wings establish the maximum width near the top, while leaf details frame the sides and a tapered point closes the bottom. This structure creates several horizontal zones: two upper banners, a center medallion, a lower role banner, and a number plate. Always provide final width and height because a photograph alone cannot communicate scale.
Separate Metal, Enamel, and Texture
A digital image can display unlimited colors and gradients, but a metal badge is built from distinct materials and surface treatments. Your brief should identify which areas are raised metal, recessed metal, polished, textured, or filled with enamel.
The badge shown here uses a silver-tone foundation with gold-tone banners and center details. Green enamel defines much of the lettering, while black creates strong contrast in the center emblem and lower number field. Fine texture across the silver-tone body helps the smoother gold-tone plates stand forward visually.
For a complex design, label finishes directly on a copy of the artwork or provide a written key. Clear labels are more reliable than asking a manufacturer to infer finishes from lighting in a photograph.
Supply the Cleanest Emblem Artwork Available
Center emblems often contain the most recognizable artwork and the smallest details. Whenever possible, provide an approved vector file such as AI, EPS, SVG, or print-ready PDF. If vector artwork is not available, use the highest-resolution image you can obtain rather than a screenshot or compressed social-media image.
The central cross design in the featured badge relies on bold, simple geometry and a circular text ring. That structure is well suited to a small metal format because the primary symbol remains easy to recognize. More detailed seals may need careful simplification so narrow lines and tiny color areas reproduce cleanly, while protected proportions and approved identifying features remain intact.
Plan Lettering at Actual Size
Text that looks spacious on a large monitor can become difficult to read when reduced to a badge only a few inches tall. Review every line at the intended physical size.
Long titles may need a curved banner, condensed typeface, smaller characters, or a wider silhouette. Letter spacing should remain open enough that enamel-filled characters do not visually merge. Recessed text also needs sufficient stroke width to hold color consistently.
In the featured layout, large upper lettering receives more space, while the longer lower title follows a curved banner. The green enamel links these separate fields into one visual system. The number is placed in its own panel, where tall characters and a dark background improve visibility.
Ask to see a proof both enlarged and at 100% scale. The enlarged view is useful for checking artwork accuracy; the actual-size view reveals whether the hierarchy and readability truly work.
Define Personalized and Variable Fields
If the design includes unique numbers or names, decide how those fields will be managed before approving the master artwork. Specify the allowed character count, whether leading zeros are required, and how shorter or longer entries should be centered.
A dedicated number plate, like the lower field on the featured badge, keeps personalization separate from the fixed design. This makes the layout easier to adapt across a series. Still, every entry should be proofread. One incorrect digit can make an otherwise well-produced badge unusable for its intended authorized purpose.
Build a Production-Ready Badge Brief
Before requesting a final proof, assemble the essential information in one place:
- Exact fixed wording, including punctuation and capitalization
- A verified list of names, numbers, or other variable fields
- Approved logo, seal, or emblem files
- Preferred silhouette and final width and height
- Metal finish for every major area
- Enamel colors and their exact placement
- Raised, recessed, polished, and textured surface instructions
- Desired attachment, backing, or display method
- Order quantity and any packaging needs
- Authorization for protected names, seals, titles, and insignia
Review the Proof Methodically
When the proof arrives, compare it with your source materials line by line. Check spelling first, then layout, emblem accuracy, colors, finishes, dimensions, and variable data. Confirm that no text has been automatically corrected or reformatted. Pay particular attention to abbreviations and leading zeros.
Badges resembling official, public-service, permit, or credential designs must be ordered and used only for lawful, properly authorized purposes. Obtain permission for protected marks and confirm all applicable rules in the country, state, province, or municipality where the badge will be possessed or displayed.
Give Your Badge Idea a Clear Path to Production
The quality of a custom badge depends partly on craftsmanship and partly on communication. Exact wording prevents transcription errors. Clean emblem files protect important details. A finish map clarifies the relationship between metal, texture, and enamel. Actual-size review protects legibility, while organized variable data keeps personalized fields accurate.
